Interchangeability of Gears

The following section is adapted from Gear Technology Solutions (The Gleason Works, 2025) by Dr. Hermann Stadtfeld. It is the first in a series of four excerpts shared to introduce key concepts in bevel gear theory, design, and production.

Replacing a Single Gear During Maintenance

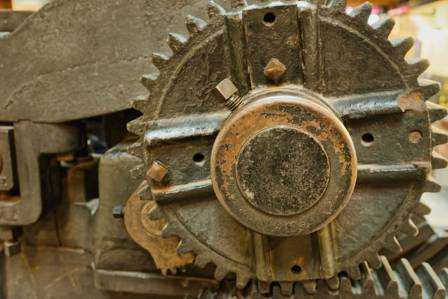

In industries such as mining and heavy construction, where large gears are used in equipment, there is often a need to replace a damaged or worn gear without changing its mating partner. At first glance, this approach may seem to go against standard mechanical principles. However, these gears can range from 500 mm to 2,000 mm in diameter and may weigh several tons.

Because of their size and value, replacing both gears is often impractical. The cost of materials, along with the added value from machining and finishing processes, makes discarding a functional gear wasteful. In addition, the labor time and specialized equipment required for full replacement can be significant. Therefore, if the mating gear shows no signs of damage—such as cracks or excessive wear—it is reasonable to consider replacing only the faulty component.

Types of Gears Suitable for Single Replacement

Certain gear types are more suitable for replacing just one member:

Couplings and Clutches: These allow replacement of one component, provided the remaining part shows no signs of fretting, cracking, or damage.

Straight Bevel Gears: These can be replaced individually, especially when using standard designs such as Coniflex gears. In these cases, the tooth geometry is defined by a straight-line lead and standard pressure angles, along with controlled crowning, making interchangeability feasible.

Spiral Bevel Gears: These are more complex and sensitive when it comes to replacement. To ensure compatibility, several parameters must exactly match the original gear, including cutter size, spiral angle, and manufacturing process. Methods like face hobbing and face milling cannot substitute for one another, and generated gears cannot be replaced with non-generated (Formate) gears. For face-hobbed gears, both the cutter radius and the number of cutter starts must be identical to the original specifications.

In critical situations, the damaged gear should be analyzed using a coordinate measuring machine (CMM). The resulting surface data can then be used to recreate the correct geometry through reverse engineering techniques. If the damaged gear is too worn for accurate measurement, the mating gear must be removed and inspected instead. Using advanced software, it may still be possible to reconstruct the missing component, although this approach is often difficult and not always practical.
